Vietnam Wood Pellet Line 12 t/h: 23-Month Payback Case Study
Vietnam · 2024
Project at a glance: A Kontum-based forestry and energy enterprise deployed four Kingwood JWZL-688 ring die pellet mills across a 12 t/h turnkey production line, achieving consistent output of 2.6–2.8 t/h per mill and a confirmed payback of 23 months.
Project Snapshot: Kontum, Vietnam — 2024
| Field | Detail |
|---|---|
| Country | Vietnam |
| Region | Kontum |
| Industry | Forestry & Energy |
| Core Machine | JWZL-688 Ring Die Pellet Mill |
| Plant Capacity | 12 t/h |
| Delivery Date | August 2023 |
| Payback Period | 23 months |
Kontum Province sits at the centre of one of Southeast Asia’s most productive forestry corridors. Acacia and rubber wood plantations supply sawdust, chips, and offcuts to a biomass fuel sector that ships pellets primarily to South Korea, Japan, and Taiwan. The operator in this case had been running eight pellet factories across the region before commissioning its first all-Kingwood plant. Their experience — moving from mixed Chinese and European equipment configurations to a unified Kingwood supply chain — provides a concrete basis for evaluating what equipment choice means for output consistency, pellet quality, and return on capital.
The Challenge: Inconsistent Output and Compressed Margins Across Eight Factories
Six of the operator’s eight factories ran Chinese-sourced pellet machinery. Ring dies and roller shells degraded faster than projected, driving unplanned downtime and elevated spare-parts expenditure. When a pellet mill operates below rated throughput, the cost extends beyond the repair bill: every downstream stage — cooling, screening, packaging — is under-utilised, and fixed cost per tonne rises sharply.
Pellet formation rates at several sites fell below the thresholds required for export. Buyers in Japan and South Korea typically require a Pellet Durability Index above 97.5%, bulk density above 600 kg/m³, and moisture content below 10%. Meeting those standards consistently demands both disciplined raw material preparation and a pellet mill capable of sustaining uniform compression across a full production shift.
To address quality shortfalls, the operator equipped two factories with European-sourced crushing and pelletizing machines, supplemented by Kingwood auxiliary systems for conveying, cooling, and dust collection. The European equipment improved pellet quality marginally but introduced long commissioning timelines, spare-parts lead times measured in weeks, and capital costs that compressed available margins. The pelleting performance was described as only average — not materially better than a well-configured Chinese line.
The hybrid arrangement also created visible integration friction. Kingwood auxiliary equipment was consistently cited as a reliable part of the line; the European core machines were not. That contrast informed the operator’s next decision: commission a single new 12 t/h factory in Kontum using Kingwood equipment for the complete process chain, from coarse crushing through packaging. If results matched expectations, all future expansion would standardise on Kingwood.
The Solution: Turnkey Dust-Free Pellet Production Line
Kingwood delivered the Kontum project under a full EPC contract covering equipment design, manufacturing, logistics, civil construction guidance, installation, commissioning, operator training, and after-sales support — the same delivery model applied across more than 2,000 production line projects planned and designed since the company was founded in 1999.
Process Sequence: Crushing → Drying → Pelletizing → Packaging
The line processes wood chips and sawdust from local forestry operations using Kingwood’s wet-feed architecture for high-moisture tropical feedstock:

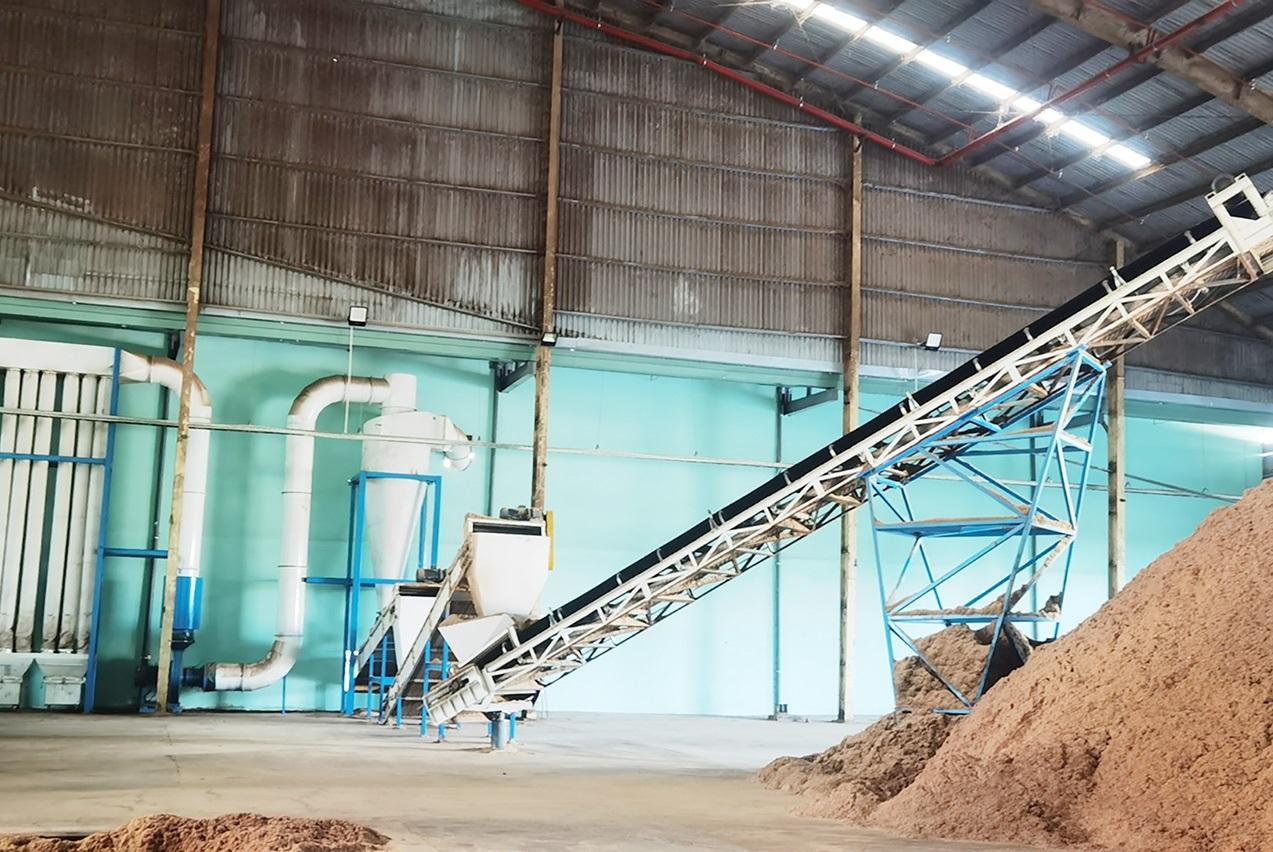

- Coarse Crushing — A hammer-type combined crusher with chain-plate intelligent feeding reduces logs, slabs, and offcuts to uniform chips. The feed rate adjusts automatically to match main motor load, preventing both overload and underload conditions.
- Drying — A drum dryer reduces feedstock moisture from the 40–50% range typical of freshly processed tropical wood to 10–14%, the specification required for efficient pelletizing. Kingwood’s triple-layer single-channel drum dryer achieves thermal efficiency above 70% and reduces power consumption by approximately 60% compared to conventional single-drum configurations.
- Fine Grinding — Dried material passes through a hammer mill for secondary size reduction to approximately 8 mm or finer, the particle size specification for consistent pellet formation in a ring die mill.

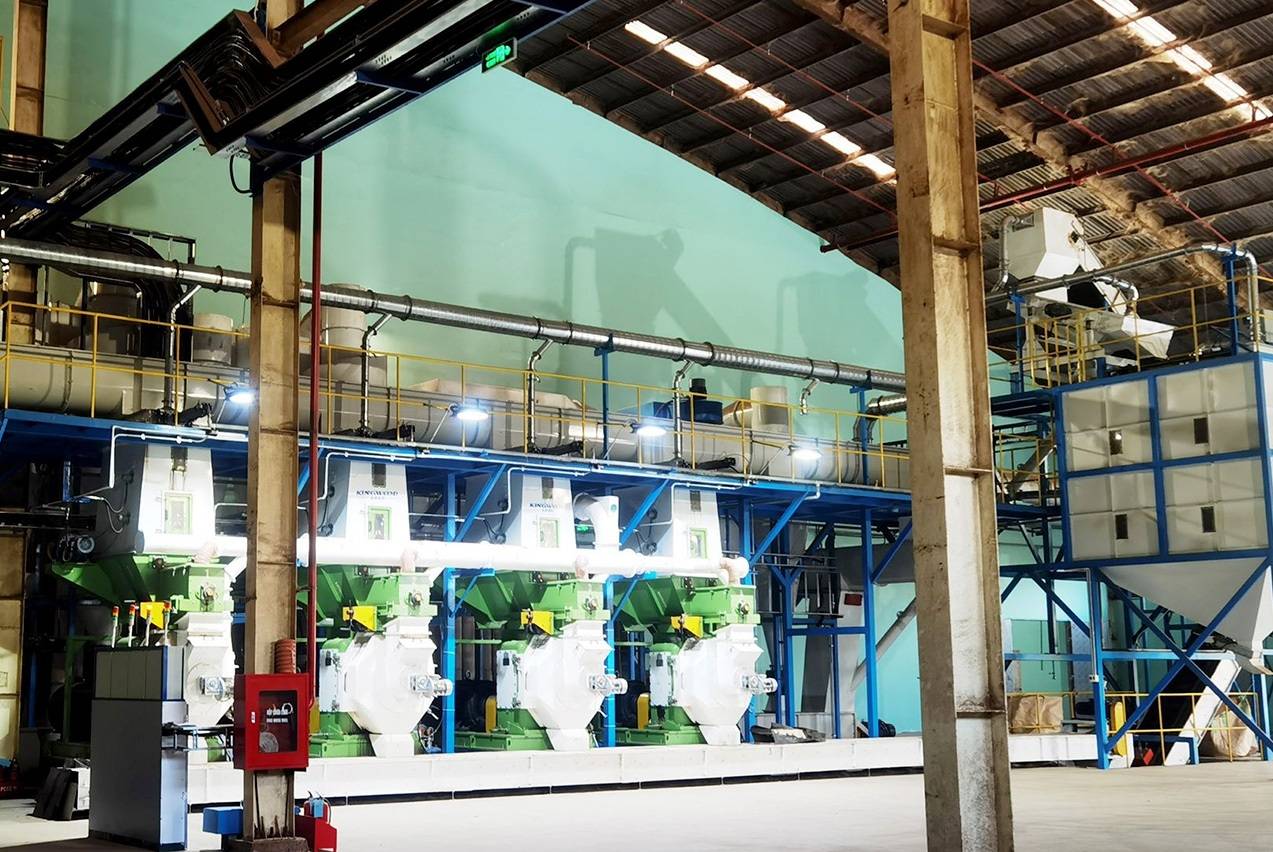

- Pelletizing — Four JWZL-688 ring die pellet mills, each rated at 2.2–3.0 t/h, form the core of the pelleting section for a combined 12 t/h design capacity.
- Cooling, Screening, and Packaging — A counter-flow cooler reduces pellet temperature from 70–80°C to within 3–5°C of ambient before screening removes fines and automated packaging prepares product for export.
All inter-stage conveying is enclosed. Dedicated dust collection systems operate at each processing stage. The plant was designed from the outset under Kingwood’s Three-Standardization Framework — integrated process flow, dust-free enclosed processing, and fully automated operation — and has been recognised locally as one of Vietnam’s cleanest biomass pellet facilities.
JWZL-688 Ring Die Pellet Mill: Core Specifications
| Parameter | Value |
|---|---|
| Main Motor Power | 200 kW (10-pole) |
| Ring Die Diameter | 688 mm |
| Ring Die Width | 110 / 130 mm |
| Compression Rolls | 2 × 303 mm |
| Rated Capacity | 2.2–3.0 t/h (dry sawdust, 10–14% moisture) |
| Pellet Formation Rate | ≥ 97% |
| Pellet Pulverisation Rate | ≤ 3% |
| Noise Level | ≤ 93 dB(A) |
| Machine Weight | Approx. 9.5 t |
The JWZL-688 uses a proprietary high-precision hard-tooth-surface gearbox. The main shaft and hollow shaft are forged from high-quality alloy steel. Roller bearings use a labyrinth mechanical seal to prevent lubricant contamination — a design detail that directly extends bearing service life. A continuous re-lubrication system and gearbox water-cooling circuit support extended operation without scheduled thermal shutdowns.
Results: Output, Pellet Quality, and 23-Month Payback
Consistent 2.6–2.8 t/h Per Mill
The JWZL-688 is rated at 2.2–3.0 t/h on dry sawdust at 10–14% moisture. Under actual operating conditions at Kontum, each of the four mills consistently achieves 2.6–2.8 t/h — comfortably in the upper half of the rated range. At a 2.7 t/h average per mill, the plant delivers approximately 10.8 t/h sustained throughput, close to the 12 t/h design capacity when accounting for feed variation between shifts. Achieving this output level in real-world tropical conditions on mixed forestry feedstock represents a direct validation of the JWZL-688’s performance envelope.
Export-Grade Pellet Quality

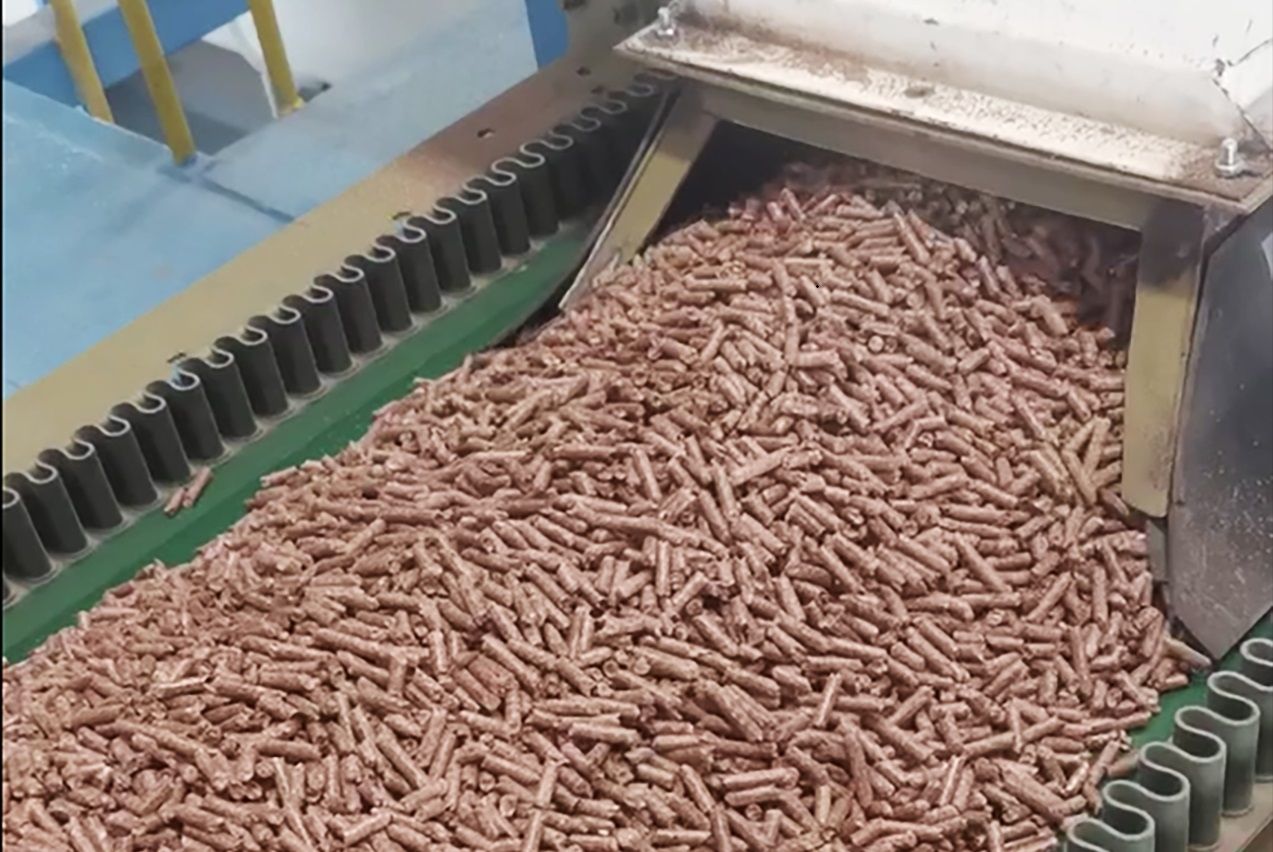

Customer feedback identifies the Kontum pellets as among the best surface-quality product in Vietnam. Smooth, glossy pellets with clean cut ends and minimal surface cracking indicate consistent compression ratio control, correct feedstock moisture at the mill inlet, and a ring die operating without uneven wear. These quality attributes translate into lower fines generation during bulk shipping and stronger commercial positions with buyers in Japan and South Korea. Pellet formation rate at the plant consistently meets the ≥ 97% specification, with pulverisation rate at or below 3%.
23-Month Payback and a Decision to Standardise
The 23-month payback reflects the combined impact of higher sustained throughput, lower per-tonne operating costs from automated dust-free processing, and reduced downtime from durable ring die and roller components. The operator’s response to the Kontum results is unambiguous: all future projects will use Kingwood equipment exclusively. This is a procurement policy change, not a preference — driven by a controlled performance comparison across eight factories with different equipment configurations.
For producers evaluating a complete wood pellet production line investment, the Kontum operator’s progression from mixed-supplier frustration to confirmed Kingwood standardisation is a directly relevant data point.
Implications for Southeast Asia Biomass Pellet Producers
Vietnam, Indonesia, Malaysia, and Thailand collectively supply a substantial share of global industrial wood pellet exports. Japan’s Feed-in Tariff programme drove imports to 4.25 million tons in 2023; South Korea’s Renewable Portfolio Standards and EU co-firing requirements sustain additional demand. For regional producers, the operational questions are consistent: how to deliver reliable throughput, maintain export-grade quality, and recover capital efficiently.
Several conclusions from the Kontum deployment apply broadly:
Integration quality matters more than equipment origin. The operator’s European-equipped factories did not outperform Kingwood-equipped factories on commercially relevant metrics. What determines output consistency is whether the pellet mill, dryer, grinding system, and dust control are configured to work together — and whether the supplier can commission and support the full line.
Dust-free design is a commercial asset. Export buyers increasingly audit supplier facilities. A clean plant built to European workshop standards reduces buyer-side risk, supports contract retention, and costs less to build correctly from the outset than to retrofit later.
Spare-parts availability drives real-world uptime. Ring dies and roller shells are consumables. Sourcing them from a supplier with direct support across 30 countries — as Kingwood maintains — reduces the risk of extended unplanned downtime that disrupts export schedules.
Standardisation delivers operational leverage. An operator running multiple factories on the same equipment platform can share operator training, spare-parts inventory, and maintenance expertise across sites. The Kontum operator’s decision to standardise on Kingwood is as much a logistics and cost decision as a quality decision.
