Biomass Pellet Machine Buyer's Guide 2026

Kingwood · May 26, 2026

Biomass Pellet Machine Buyer’s Guide 2026

Choosing the rightindustrial biomass pellet mill machinesis a significant capital decision. This guide covers machine types, technical specifications, full production line configuration, supplier evaluation, and realistic cost and ROI figures — giving buyers in India, Vietnam, Indonesia, and other markets the information needed to compare options and ask the right questions before committing to a purchase.

What Is a Biomass Pellet Machine and How Does It Work?

Abiomass pellet machine(also called a pellet mill or pellet press) compresses loose biomass material into dense, cylindrical pellets — typically 6 mm to 12 mm in diameter. The output pellets have a bulk density of 600–750 kg/m³, compared to 80–150 kg/m³ for raw wood chips or agricultural residue. This density increase makes pellets far more practical to store, transport, and combust.

The Pelletizing Process

Biomass is fed into the machine and forced through a die — a thick metal plate or ring drilled with precisely sized holes. The combination of pressure and friction generates heat (typically 80–120°C), which activates the natural lignin in the biomass and acts as a binder. No chemical additives are required for wood-based feedstocks. The extruded material is cut to length by rotating knives.

Compatible Raw Materials

Most pellet mills process:

• Wood-based materials:sawdust, wood shavings, wood chips (after size reduction), bark

• Agricultural residues:rice husk, straw, corn stover, sugarcane bagasse, groundnut shells

• Energy crops:miscanthus, bamboo, elephant grass

Moisture content is a critical input parameter. Most pellet mills require feedstock at 10–18% moisture (wet basis). Material above 20% moisture needs pre-drying; material below 8% may produce fragile pellets or increase die wear.

Types of Biomass Pellet Machines: Flat Die vs Ring Die

The two main designs on the market serve different scales of production. Understanding the mechanical difference helps buyers avoid purchasing the wrong type.

Flat Die Pellet Mills

In a flat die machine, the die sits horizontally and rollers press material through vertical holes. The drive mechanism is simpler, the machine footprint is smaller, and unit costs are lower.

• Typical capacity:50–800 kg/h per machine

• Typical motor power:7.5–55 kW

• Price range (2026):USD 1,500–12,000 ex-works China

• Best for:small farms, village-level operations, R&D, on-farm residue processing

Flat die machines are mechanically accessible — spare parts are easy to source and local mechanics can often perform basic maintenance. However, the die and roller wear faster under continuous industrial use, and output quality can vary more than ring die machines at the same throughput.

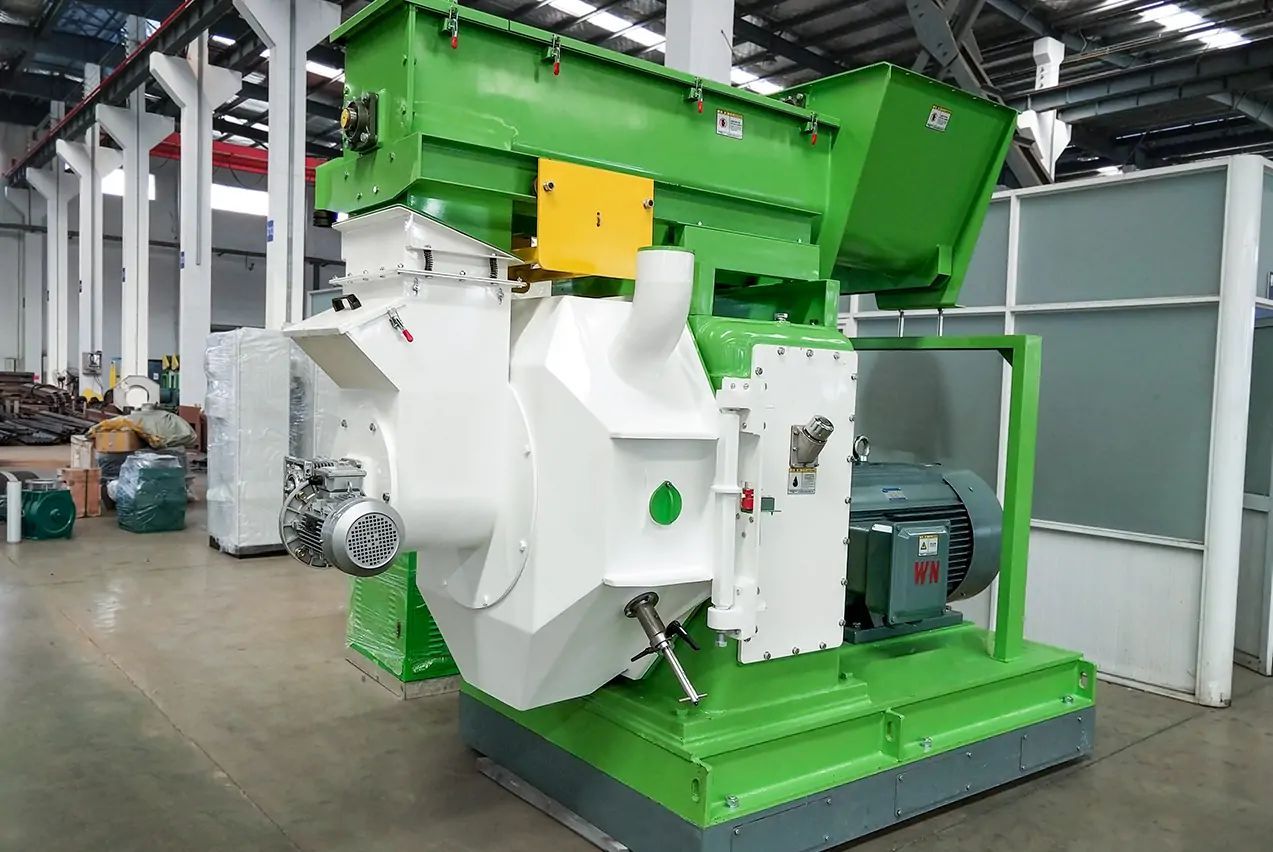

Ring Die Pellet Mills

The ring die design uses a rotating cylindrical die with rollers pressing material outward through the die holes. This geometry distributes wear more evenly and suits continuous, high-volume production.

• Typical capacity:500 kg/h to 5+ t/h per machine

• Typical motor power:55–400 kW

• Price range (2026):USD 15,000–120,000+ ex-works China

• Best for:commercial pellet plants, industrial fuel supply, export-grade pellet production

Ring die machines produce more consistent pellet density and durability (pellet durability index, or PDI, typically 97.5%+ on well-maintained machines), which matters for buyers supplying pellets to power plants under quality contracts.

Quick Comparison

Key Technical Specifications to Evaluate Before Buying

Output Capacity

Nameplate capacity figures from suppliers are measured under ideal conditions: correct moisture content, consistent particle size, ambient temperature. Real-world output is typically 80–90% of nameplate under normal operating conditions.

When sizing a machine, work backward from your target annual or monthly production volume, then account for: - Planned operating hours per day (single shift = ~7 hours productive; double shift = ~14 hours) - Downtime for die changes, maintenance, and material interruptions (typically 10–15% of scheduled time) - Seasonal feedstock availability if you are processing agricultural residue

Power and Energy Consumption

A useful benchmark: ring die pellet mills typically consume50–80 kWh per metric tonof pellets produced, depending on feedstock density and moisture. For a 1 t/h machine running 7,000 hours/year, that equals 350,000–560,000 kWh annually. At industrial electricity rates of USD 0.06–0.12/kWh (common in Vietnam, India, Indonesia), this is a meaningful operating cost to calculate before purchase.

Pellet Diameter and Quality Standards

Standard pellet diameters: -6 mm:household heating appliances, small boilers -8 mm:industrial boilers, co-firing in power stations -10–12 mm:large industrial combustion systems, some export markets

For buyers targeting European export markets, pellets should comply withENplus A1 or A2standards, which specify moisture content (≤10%), ash content, mechanical durability (≥97.5%), and net calorific value (≥16.5 MJ/kg for wood pellets). Buyers supplying domestic industrial customers in Southeast Asia or South Asia may operate under looser specifications, but verifying customer requirements before setting die specifications avoids costly retrofits.

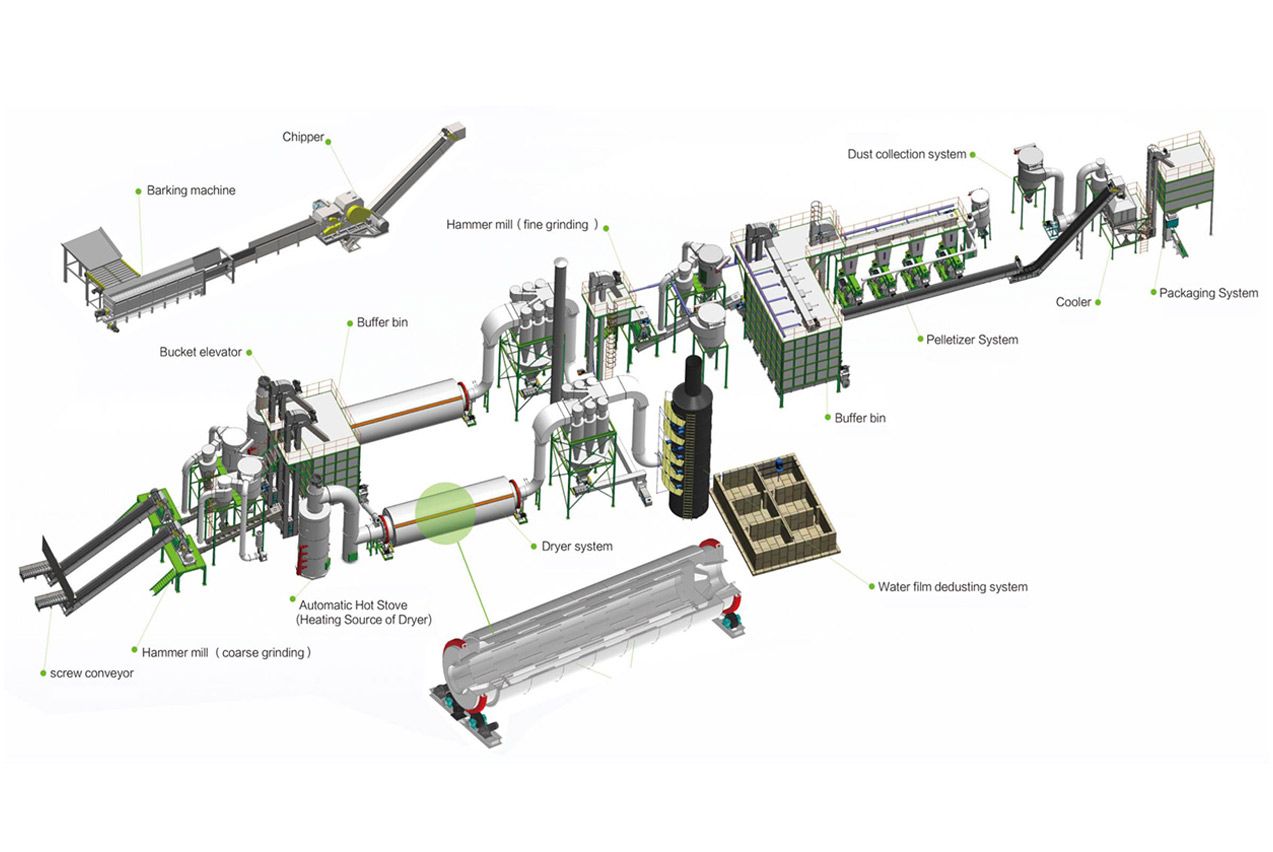

Supporting Equipment in a Complete Pellet Production Line

A pellet mill is one machine in a multi-stage process. Buyers who purchase only the pellet mill and then discover they need additional equipment face delays and unplanned capital costs. Acomplete biomass wood pellet production linetypically includes the following stages:

Size Reduction

Raw material must be reduced to a particle size compatible with the die hole diameter — generally 3–5 mm for a 6–8 mm die. A hammer mill or wood chipper handles this depending on input material form (logs, chips, agricultural stalks).

Drying

If feedstock moisture exceeds 18%, a dryer is required. Rotarydrum dryer for biomass pellet productionis the most common choice for continuous industrial lines, with evaporation capacities typically ranging from 500 kg/h to 5 t/h of water removed. Our customers in Indonesia frequently underestimate the drying capacity needed when processing rice husk during wet season — feedstock can arrive at 25–30% moisture after rainfall.

Cooling and Screening

Pellets exit the mill at 70–90°C and 17–20% surface moisture. A counterflow cooler brings temperature to within 5°C of ambient and reduces moisture to ≤12% — necessary for safe storage and bagging. A vibrating screen removes fines (broken pellets) before packaging.

Packaging

Options range from manual 25–50 kg bag filling stations to automatic bulk bagging systems for large operations.

How to Evaluate a Chinese Biomass Pellet Machine Supplier

The majority of biomass pellet machines sold globally are manufactured in China. Quality varies substantially across suppliers. The following framework helps buyers reduce risk.

Certifications to Request

• CE marking:required if equipment is imported to EU countries or used in EU-standard projects

• ISO 9001:indicates a documented quality management system (request the certificate and verify it is current)

• SGS or BV inspection reports:third-party factory audits that can be requested at buyer’s cost prior to large orders

Factory Verification Steps

If you cannot visit the factory (common for buyers in India, Vietnam, and Indonesia ordering remotely):

• Request a live video walkthroughof the production floor, CNC machining area, and assembly hall — not a pre-recorded promotional video

• Ask for photos of your specific order in production, including die ring markings and motor nameplates

• Engage a local inspection agent(SGS, Bureau Veritas, QIMA) for pre-shipment inspection — cost is typically USD 300–600 per inspection and is usually worth it for orders above USD 20,000

• Check export records:platforms like Panjiva or ImportYeti list verified Chinese export shipments and can confirm whether a supplier has shipped similar equipment to buyers in your region

Key Questions to Ask Before Ordering

• What steel grade is used for the die and rollers? (Ask for material certificates — high-chromium steel or D2 tool steel is preferable for longer wear life)

• What is the standard warranty period, and does it cover die and roller wear?

• What is the lead time for spare dies in your standard diameter? (Dies typically need replacement every 500–1,500 hours depending on feedstock abrasiveness)

• Is documentation available in English for customs clearance and installation?

• What is the lead time? (Typical: 25–45 days for standard models, 45–75 days for customized configurations)

We’ve seen orders go wrong when buyers forget to specify the local power supply voltage and frequency upfront — rewiring a 380V/50Hz motor for a 415V/50Hz or 440V/60Hz market adds cost and delay after arrival.

Biomass Pellet Machine Price Ranges and ROI in 2026

Price Ranges by Scale

These are pellet mill prices only. A complete line (including hammer mill, dryer, cooler, conveying, and controls) typically costs 2.5–4× the pellet mill price alone.

ROI Calculation Framework

Key variables: -Pellet selling price:USD 80–130/ton for domestic industrial markets in South/Southeast Asia; USD 180–260/ton for ENplus-grade export pellets -Feedstock cost:USD 10–40/ton for sawdust or agricultural residue depending on location and season -Operating cost (energy + labor + maintenance):typically USD 20–45/ton produced

A 1 t/h ring die line running 6,000 hours/year producing 6,000 tons at a margin of USD 40/ton generates approximately USD 240,000/year gross margin before fixed costs. Payback on a USD 150,000 complete line investment would be in the range of 12–24 months under these assumptions — but feedstock price volatility and market demand in your specific region must be factored in independently.

Common Applications and Markets for Biomass Pellets

Pellets serve as a substitute for coal, natural gas, and fuel oil in thermal energy applications. For a detailed breakdown of use cases by industry, seebiomass pellet applications and uses.

Industrial and Commercial Heat

The primary buyers of pellet fuel in South and Southeast Asia are textile mills, paper mills, food processing plants, brick kilns, and tobacco curing operations — industries with high thermal energy demand looking to reduce fuel costs or comply with emission regulations.

Power Generation

Co-firing biomass pellets with coal in existing power plants is an established pathway in India and Vietnam. Several state utilities in these markets have published co-firing targets, which creates domestic demand for large-volume pellet supply contracts.

Export Markets

Vietnam and Indonesia are among the world’s largest exporters of wood pellets, primarily supplying South Korea and Japan under long-term biomass power contracts. Buyers establishing pellet plants in these countries with adequate feedstock access can target export markets, provided they meet the moisture, ash, and durability standards required by destination market regulations.

How Kingwood Supports Buyers at Each Stage

Kingwood biomass equipment manufacturerdesigns and manufactures pellet mills, complete production lines, and auxiliary equipment. Rather than a catalog summary, here is what this means practically for international buyers:

Line design support:Kingwood engineers will review your feedstock type, moisture range, and target output before recommending a configuration — including whether your feedstock actually requires a dryer, and what die compression ratio suits your material.

Spare parts planning:We ship a recommended spare parts package with each line — dies, rollers, bearings, and wear plates. Buyers in India and Indonesia have told us that sourcing replacement dies locally after the fact is difficult; having spares on-site from day one prevents weeks of downtime.

Documentation:CE certificates, packing lists, and installation manuals in English are provided as standard for all export orders.

Lead time transparency:Standard ring die lines ship in 30–40 days. Custom configurations or orders requiring third-party inspection should allow 50–70 days from order confirmation to port departure.

If you are at the evaluation stage and want to compare specifications or get a line configuration recommendation for your feedstock, contact the Kingwood technical team directly with your feedstock type, target capacity, and available power supply — that information is enough to produce a preliminary equipment list and budget estimate.
